ZXYT-41000Four-color high-speed adagio printing machine - - Products

Summary:
Film, milk, paperboard, cell membrane, carton printing, and so on. Press function

Flexible configuration, can be wired double-sided printing, adhesive strip printing, UV glazing, pressure bump, die-cutting, laminating, hot stamping, cutting, etc
Cheng. Is alcohol, cigarettes, medicine, cosmetics, milk bags, juice bag, carton packaging (trademark, HeDai, box, etc.) of the ideal printing equipment.

Characteristic:

model	ZXYT-41000
Maximum web width	39.96" (1015mm)
Maximum print width	39.37" (1000mm)
Plate repeat length	11”- 26" (279.4-660mm)
Maximum unwinding diameter	60" diameter ( 1524mm)
Maximum recovery roll	60" diameter (1524mm)
Gear specifications	1/8CP,pitch3 175mm
Maximum machine speed	150m/min
motor	11kw
Lubrication system	Automatic lubrication system
Operation console	Located in front of the printing unit
Air pressure requirement	100PSI(O.7Mpa)
Power supply demand	380VAC3ph phase 50HZ Hertz
Printable materials	40-200gsm paper printing, film, non-woven fabric, etc.
Machine color	Grayish white

The quality and performance of the equipment continue to improve, and the appearance, technical parameters and characteristics of the machine are subject to change without notice

ZXYT-41000Four-color high-speed adagio printing machine样品图

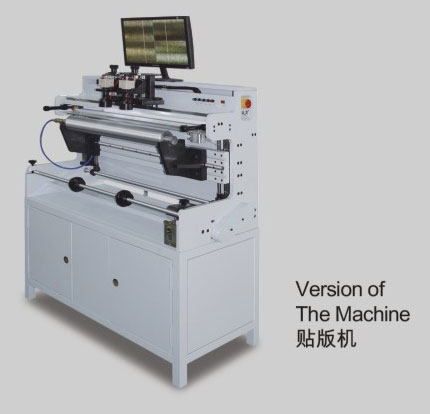

ZXYT-41000Four-color high-speed adagio printing machine机械细节图
